Toyota RHD Hilux 2.8L
Professional Armored Vehicle Solutions - Where Tactical Superiority Meets Uncompromising Reliability
Protection Level
BR6
Vehicle Type
Armored Pickup
Availability
Immediate
Shipping
Worldwide
Vehicle Gallery

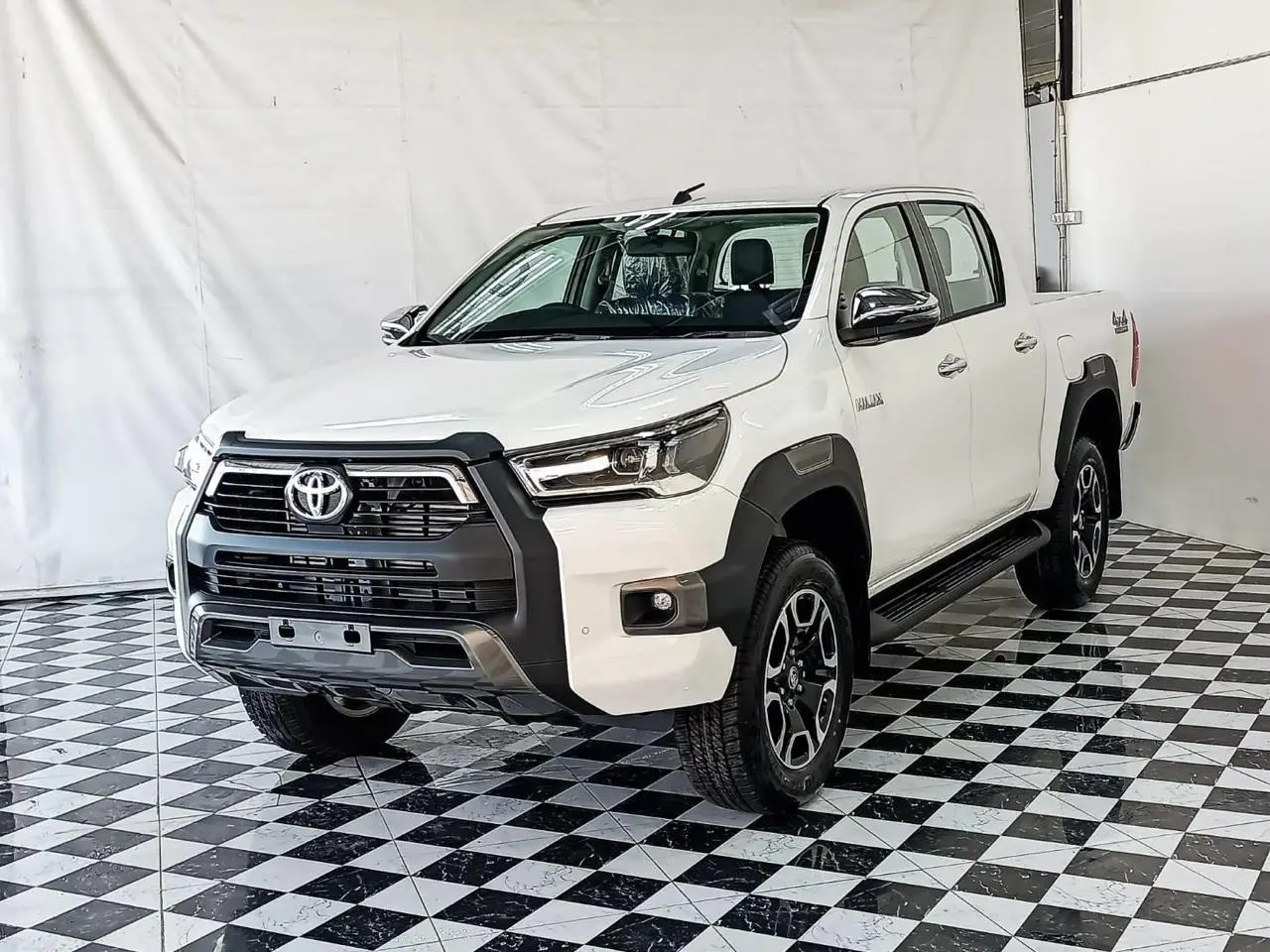

Comprehensive visual documentation of the Toyota RHD Hilux 2.8L
1 / 15
TECHNICAL SPECIFICATIONS
Comprehensive protection and performance details
VEHICLE PLATFORM & PERFORMANCE
Engine:
2.8L GD-6 Turbo Diesel, 4-cyl DOHC, D-4D
Output:
Max Power: 204 hp @ 3000–3400 rpm | Max Torque: 500 Nm @ 1600–2800 rpm (6AT)
Configuration:
Double Cab 4x4 (Right-Hand Drive), 5-seater
Dimensions (L × W × H):
5325 × 1855 × 1815 mm
Wheelbase:
3085–3090 mm (variant-dependent)
Ground Clearance:
310 mm (Double Cab)
Curb Weight:
~2135–2210 kg (variant-dependent)
Gross Vehicle Weight (GVW):
2910 kg
Payload Capacity:
~700–775 kg (typical for 2.8 AT DC 4x4)
Fuel Tank:
80 L
Suspension:
Double wishbone (front), Leaf spring (rear) with heavy-duty upgrade for armor
PROTECTION SPECIFICATIONS
Protection Level:
BR6/B6 protection level (CEN 1063/1522 certified)
Coverage:
360° complete armored capsule (all sides, roof, floor, pillars)
Door System:
Overlap system with ballistic steel eliminating gaps
Floor Protection:
Enhanced to defeat two DM51 grenades simultaneously
TECHNICAL SYSTEMS
Engine Protection:
BR6-rated armor for batteries, ECM, vehicle management
Fuel System:
Blast-resistant armor with explosion-proof cover
Tire System:
Hutchinson run-flat on all five wheels (50km at 80km/h)
Firewall:
Armored partition with enhanced roof grenade protection
BALLISTIC PERFORMANCE
Ammunition Resistance:
7.62×39mm AK-47, 5.56×45mm M16,
7.62×51mm NATO
7.62×51mm NATO
Glass Protection:
High optical clarity ballistic glass matching opaque protection
Grenade Resistance:
Roof defeats DM51 and HG85 hand grenades
SPECIAL FEATURES
Defensive Options:
Optional gun ports in rear quarter panels and bulkhead
Emergency Systems:
Multiple escape routes and armored emergency exits
Interior Options:
Extended luxury VIP configurations with premium leather
Certification:
ISO 9001:2008 certified with independent ballistic testing
QUALITY ASSURANCE
Manufacturing:
35,000 sq ft fully-equipped facility
Standards Compliance:
CEN, NIJ, VPAM, STANAG international standards
Testing:
Third-party ballistic certifications for all materials/processes
Warranty:
1-year/20,000km coverage on all armor-related components
